SET UP
TO BE USED WITH THE

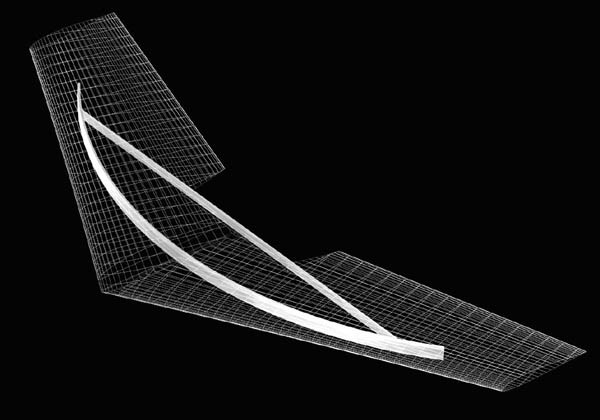

FULL BOWED SPAR AND
CROSS MEMBER
altmot9
HOT SET UP PAGE
(WITH LINKS TO BUY ON LINE)
MEGA MANTA
AND
MAYHEM MANTA
ALTERNATE
MOTOR
SET UP
TO BE USED WITH THE
FULL BOWED SPAR AND
CROSS MEMBER
MOTOR
Kyosho
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXW933&P=7
Kyosho EndoPlasma 16x2
22.50
Griffin 40 or 55 Castle Creations $89.00)
http://www.castlerc.com/griffin.html
**********************************************************
MASTER AIR SCREW
12/8 folding prop Remove the spinner and turn prop
facing backwards, insert the keeper it's a pusher.
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXZ996&P=7
***************************************************************
or
Available from New Creations
http://www.newcreations-rc.com/
The above picture shows the Cam prop and hub set and the
forward and backward folding keepers, gear box axel, aluminum spacer,
copper shaft sleeve and axel washer and tightening nut.
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXSL79&P=M
$55.00
Now available the Mega Manta 8 "subC" Yellow Jacket Battery Pack.
Sanyo yellow jacket battery CP-2400SRC mAh pack $55.00 with
your order of a Mega Manta.
10 cell CP-2400SRC mAh pack $75.00 (50amp speed controller needed)
4/5 CP-1700SRC 8 $50.00 or 10 pack $65.00
for 4 to 6 oz lighter pack
Pinion Gear CHANGE A Must!
YOUR AMP DRAW WILL BE UP TO
47AMPS (STATIC) WITH
THE 12 TOOTH PINION GEAR 8 CELL PACK AND JUST OVER 40 AMPS WITH 10 TOOTH PINION
GEAR THE 10 CELL PACK.
When using a Kyosho EndoPlasma 16x2
and the
above set up you must use the 12 tooth pinion gear
with a 8 cell pack or a 10 tooth pinion gear with a
ten cell pack.
12 Tooth has a set screw from Great Planes
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXTG41&P=M
10 Tooth pinion gear when using 10 Cell also
available from New Creations
http://www.newcreations-rc.com/
The 10 tooth set up you will need the pinion puller and press
tool ask for them
from New Creations
**************************************
