SPEC'S & MORE

6    F O O T    W I N G    S P A N    9 3 6    S Q U A R E   I  N C H E S

72 INCH WING SPAN
Thermal Duration Machine

2.5:1  (Great Planes gear box), 12/8 folding  prop, Mega Mayhem Motor, 2400mah "sub c", C-50 speed control, ABS  battery-motor saddle, 68 oz, 936sq inches 10.90 wing loading, 12 to 15 min runs, (in  thermal 40+ min runs). Rate of climb 15 feet per second --- 300 feet in 30 seconds 40 degree climb angle. approximately 28-30 ounces of thrust
Use a 3.0:1 gear box:  it slows down a little but adds to duration by 15% for longer run times.

OR

The above set up is good for moderate flying with duration but if you like more power and performance for little shorter run time then the following is a great set up:

Kyosho EndoPlasma 16x2
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXW933&P=7

Great Planes Pinion Gear 12T 3.8:1
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXTG41&P=M

Use the Endo Plasma with a 12 tooth pinion gear and 8 cell "sub C" battery pack and you will
get more speed, thrust and outside loop performance with best built spar system. If you go to 10 cell you must change the pinion gear to a 10 tooth
10 Tooth pinion gear when using 10 Cell also
available from New Creations
http://www.newcreations-rc.com/

60 INCH MODIFIED MAYHEM MANTA
Hot Speed Version

For hot set ups or " The Modified Mayhem Manta" with high thrust motor/prop/gear set up/use the full bowed and cross member spar system (weight can go up to 70 ounces).
HOT SHIP SET UP MAYHEM MANTA (click here)

Cores only avilable

CORES - 4" EPP leading edge
More cushion-longer lasting

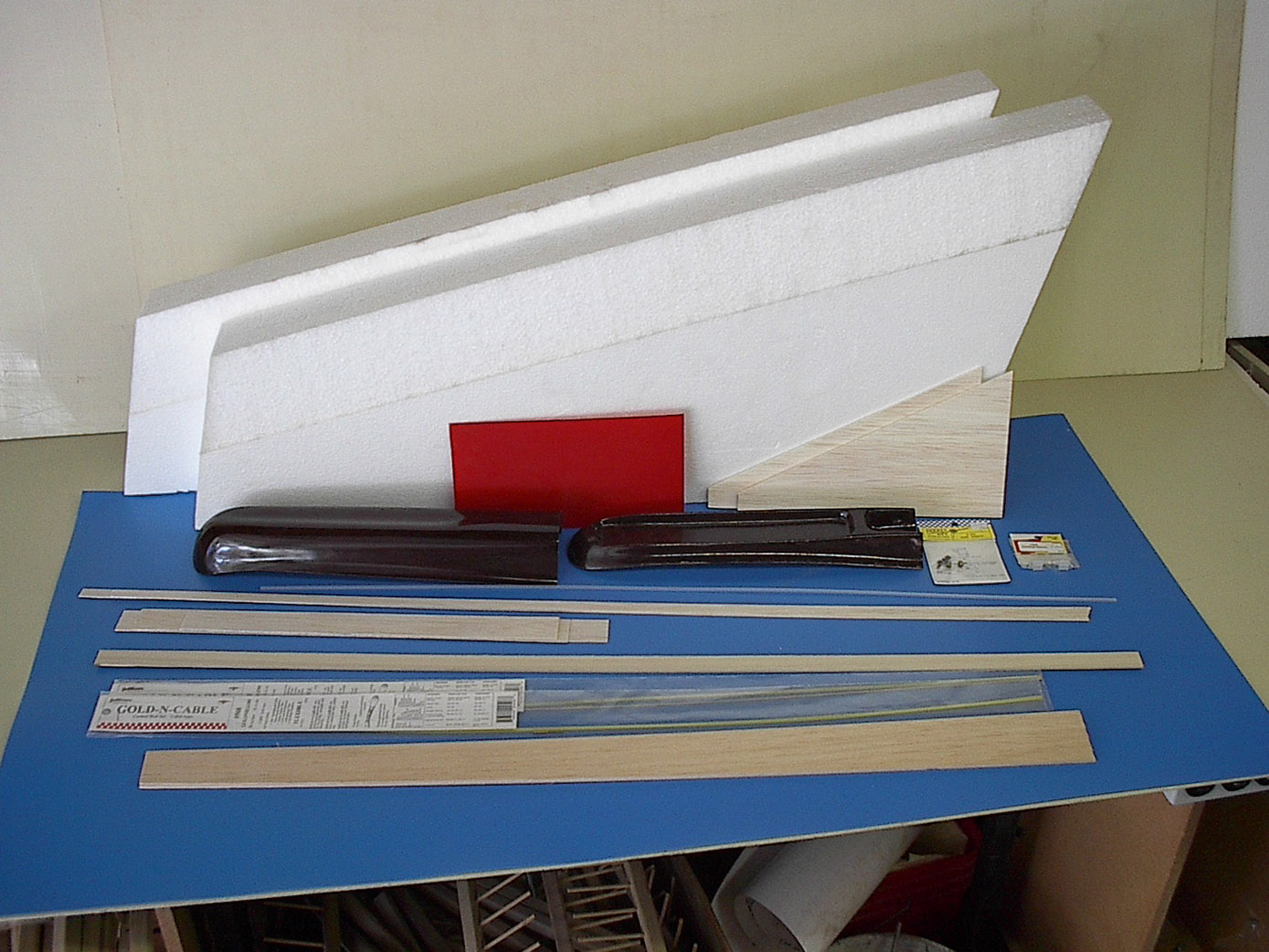

WHAT'S IN THE KIT?


Click on the thumbnail to see  bigger picture
KIT PICTURE NOT PICTURED, MOTOR PLATE, ABS TIPS, FULL SPAR SYSTEM

 PARTS LIST  FOR  KIT

1.   Two wing halves, right and left, cores and beds
2.   One spline ( thin plastic wing joiner)
3.   Two ailerons , tapered
4.   Control horns
5.   Control lines, w/clevis, w/control line housings
6.   Adjustable cable connectors Rod Chuck
7.   Wing tips (2 wing tips) (Balsa)
8.   ABS battery, motor, and speed control housing
9.   ABS Cover Cowl
10. Balsa trailing edge and end caps
11. Velcro for motor keeper, and cowl retention
12. Hardwood spar for bowed spar
13. Hardwood cross member spar for HOT SET UPS'
14. Aluminum motor mounting plate with nylon hard point

               THINGS YOU NEED FOR BUILDING

1.  3M #77 spray glue
2.  Putty knife and old butter knife
3.  Heat source, flame from burner
4.  Flat table top
5.  GE silicon sealer
6. 50 grit & 100 grit sand Paper
7. Roll of Fiber packing tape 2, rolls of color covering tape or covering
    material of your choice

               THINGS YOU NEED TO FLY

1.  Motor
2.  Speed Control
3.  Battery pack
4.  Battery charger
5.  Prop
6.  Gear box (and extra main gears)
7.  Mixing 3 channel radio (FM)

WE DO NOT SELL THE ELECTRONICS OR POWER SYSTEMS
THE FOLLOWING ARE SOME SUGGESTIONS

   ELECTRONIC SUGGESTIONS FOR POWER

2400 mAh 8 cell NiCad battery pack


Now available the Mega Manta 8 "subC" Yellow Jacket Battery Pack.
Sanyo yellow jacket battery 2400 mAh pack $55.00 with
your order of a Mega Manta.
10 cell 2400Ah pack $75.00 (50amp speed controller needed)

C-50 Great Planes speed control (NEW) $49.00
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXZJ18&P=M
or

Griffin 40 or 55 Castle Creations  $89.00)
http://www.castlerc.com/griffin.html


http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LX3610&P=7

The Astro Flight 110D  1 to 18 cells

Part#70671
Kyosho Magnetic Mayhem Truck motor (more torque) $20.00
Standard rotation when using gear box
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXW928&P=7

MASTER AIR SCREW

12/8 folding prop Remove the spinner and turn prop
facing backwards, insert the keeper it's a pusher.
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXZ996&P=7

"THROW IT-THEN HIT THE THROTTLE"

http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXSL79&P=M

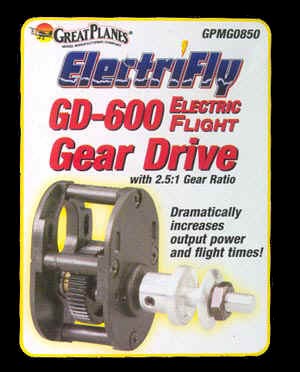

Gear Box Great Planes

2.5:1 is hotter pinion gear for the Kyosho Magnetic Mayhem Motor
This gear box has a lot to offer. You can adjust the gear mess with a good
deal ease, the pinion gear is steel, open housing for optimum cooling, easy
gear changes, and operational inspections, light weigh, and set screw for the
pinion gear, not to mention the pinion gear options for 3.0:1, 3.8:1.

3.0:1 use this pinion gear with Kyosho Magnetic Mayhem for
longer run times (total flying weight not to exceed 68oz)
http://www2.towerhobbies.com/cgi-bin/wti0001p.pgm?Q=1&I=LXTG40&P=M

3.8:1Kyosho Magnetic Mayhem Motor
Only use this gear set up when you've built as light as possible (basic spar) and
only intend to fly as a slow park flyer not on a windy day. (64oz)

******************************************************************
You can adjust your weight by using 4/5 "C" battery packs by as much as 4.5 to 6oz
however your duration will less under power use this method for thermal days
**************************************************************************
